MS6 Single-Axis Controller



Product Description

Designed for simplicity and cost-effectiveness, the MS6 is our most inexpensive controller. The MS6 has very few moving or mechanically linked parts - the potentiometer is direct-driven. No other couplings, cams or hardware is needed.


Features

  • Mechanical Life: > 1 million cycles
  • Operating Temperature: -40 to +70°C
  • Handle Deflection: 50° (center to full: 25°)
  • Total Potentiometer Rotation: 50°
  • Contact Rating: Type V3 SPDT 10amp at 125VAC, Type V3 SPDT 10amp at 24VDC
  • Degree of Protection: IP54 above panel
  • Handle Deflection (from center): 25°
  • Contacts: 3 with UFO board, 4 without
  • Electronics Available: UFO Electronics
  • Number of Microswitches: 4



thumbnail of ms6

Click image to view / download / print[

sac-bulletin

Click image to view / download / print

m6mounting

Click image to view / download / print

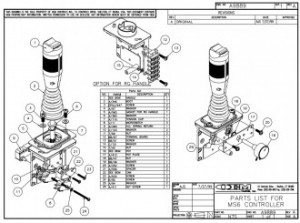

ms6spare

Click image to view / download / print
